TRSD - Universal Valve Diagrams - 5 Port Brass Valve Diagram

5 Port Brass Valve Diagram

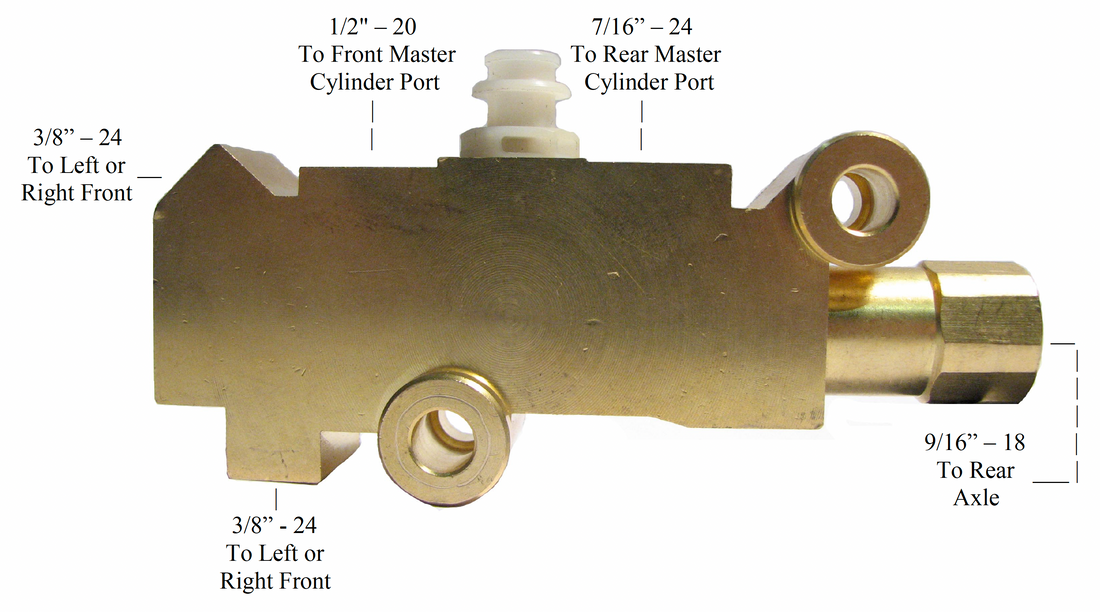

This supplement is for customers who have chosen the “fixed” combination valve with the purchase of our disc brake conversion kits. This diagram shows where each port of the valve routes. If you have any further questions or concerns, please don’t hesitate to call our toll free technical support line. Thank you again for your business.
